AD-ASMB-807

LGA4677 ATX server board with 5th/4th Gen Intel® Xeon® W processors
DDR5 4400/4800 MHz RDIMM up to 2TB (8 DIMMs) supports Intel® Optane™ Persistent Memory
3 x PCIe x16 Gen 5, 1 x PCIe x8 Gen 5, and 2 x PCIe x4 Gen 4
Intel® X710 dual 10GbE ports
8 x SATA 3 and 2 x M.2 connectors (PCIe x4)
9 x USB 3.2 ports including one Gen2x2 via Type E-Key A connector
0 ~ 60°C (32 ~ 140°F) ambient operating temperature range

Datasheet

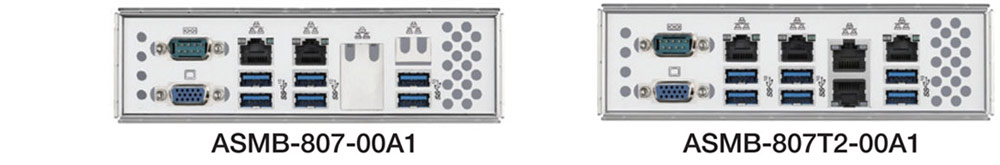

Model	ASMB-807-00A1	ASMB-807T2-00A1
CPU	Intel Xeon® W-3500/2500 and W-3400/2400 processor	Intel Xeon® W-3500/2500 and W-3400/2400 processor
Socket Q'ty	1 x LGA4677	1 x LGA4677
TDP	Up to 385 W	Up to 385 W
Chipset	Intel® W790	Intel® W790
Memory Type and Speed	DDR5 5600 MHz RDIMM	DDR5 5600 MHz RDIMM
Channel	8	8
System Max Capacity	2 TB	2 TB
PCIe/PCI Module	1 x PCIe 4.0 x1, 1 x PCIe 4.0 x4, 1 x PCIe 5.0 x8, 3 x PCIe 5.0 x16	1 x PCIe 4.0 x1, 1 x PCIe 4.0 x4, 1 x PCIe 5.0 x8, 3 x PCIe 5.0 x16
M.2	2 (PCIe 5.0 x4)	2 (PCIe 5.0 x4)
USB	1 x USB 3.2 Gen2 keyE, 2 x USB 3.2 Gen1, 1 x USB 2.0 Type-A, 2 x USB 2.0	1 x USB 3.2 Gen2 keyE, 2 x USB 3.2 Gen1, 1 x USB 2.0 Type-A, 2 x USB 2.0
2.5GbE	2	2
Controller	Intel® I226	Intel® I226, Intel® X710
1GbE	2	2
10GbE	-	2
Display	1 x VGA port	1 x VGA port
USB	6 x USB 3.2 Gen1	6 x USB 3.2 Gen1
TPM	TPM 2.0 optional module card	TPM 2.0 optional module card
SATA Port	8	8
System Fan	5 x system, 1 x CPU	5 x system, 1 x CPU
Controller	Aspeed AST2510	Aspeed AST2500
IPMI	-	Advantech remote monitoring utility
Watchdog Timer Output	System Reset	System Reset
Operating-Temperature	0 ~ 60 °C (32 ~ 140 °F)	0 ~ 60 °C (32 ~ 140 °F)
Form Factor	ATX	ATX
Dimensions (L x H)	305 x 244 mm (12" x 9.6")	305 x 244 mm (12" x 9.6")
EMC	CE/FCC	CE/FCC
